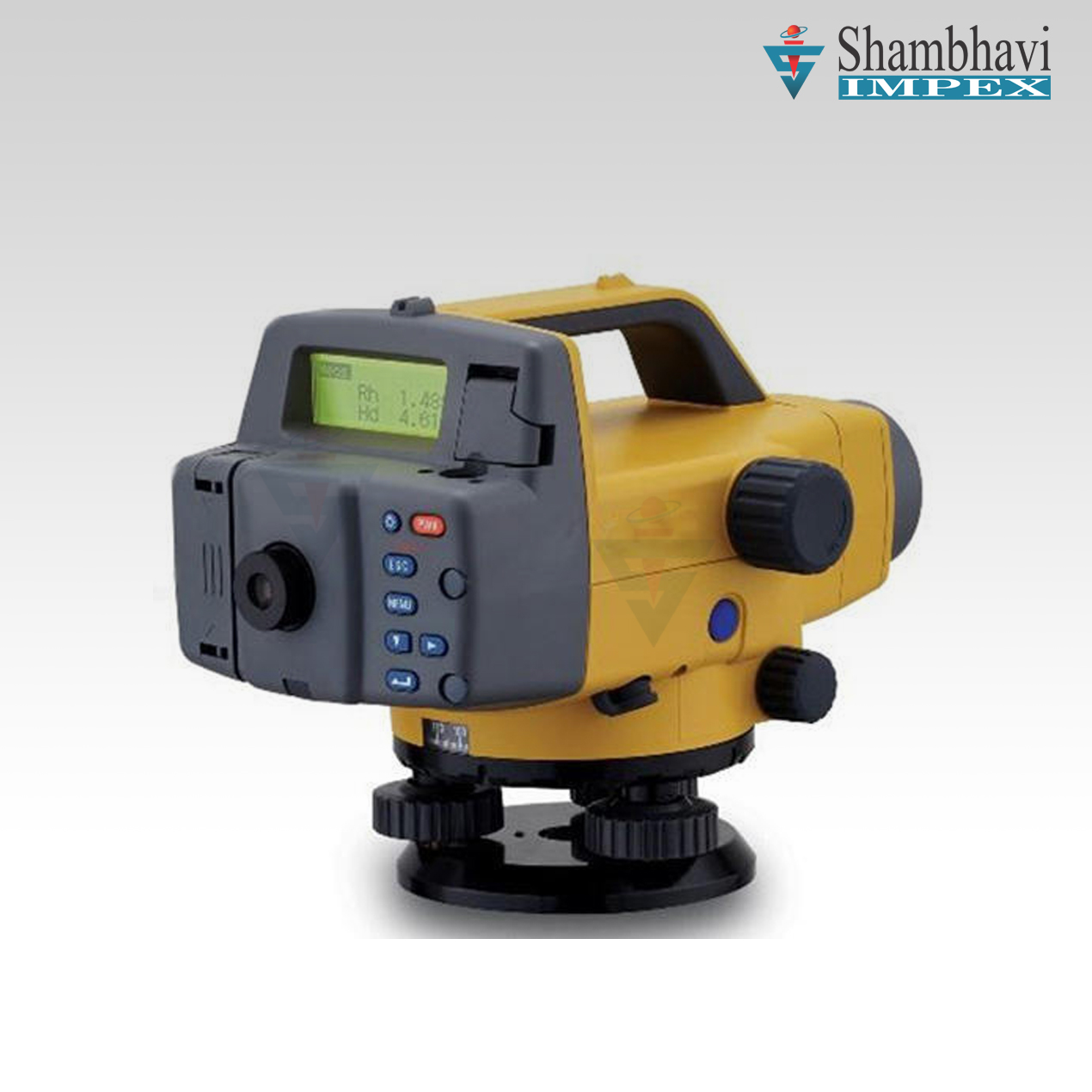

Automatic Level

Automatic Level
Features

• High resolution 32X telescope.

• Horizontal tangent system with magnetically-damped compensation structure.

• Excellent shockproof function with patent

• Totally sealed structure for use in any weather

• Exclusive closed magnetic field, magnetically - damped compensator

• Reflector -type circular vial observation

Specification Image - Erect Magnification - 32X Effective Objective Aperture - 42mm Field of view - 1°20' Minimum Focus - 0.4m Multiplication constant - 100 Additive constant - 0 Compensator range - ±15 Compensator setting accuracy - ±0.3" Sensitivity of bubble - 10'/2 mm Horiz. circle-reading - 1° or 1 gon Standard deviation for 1 km double run levelling - 1mm Net Weight - 1.85 kg Center Screw type - M16&5/8"

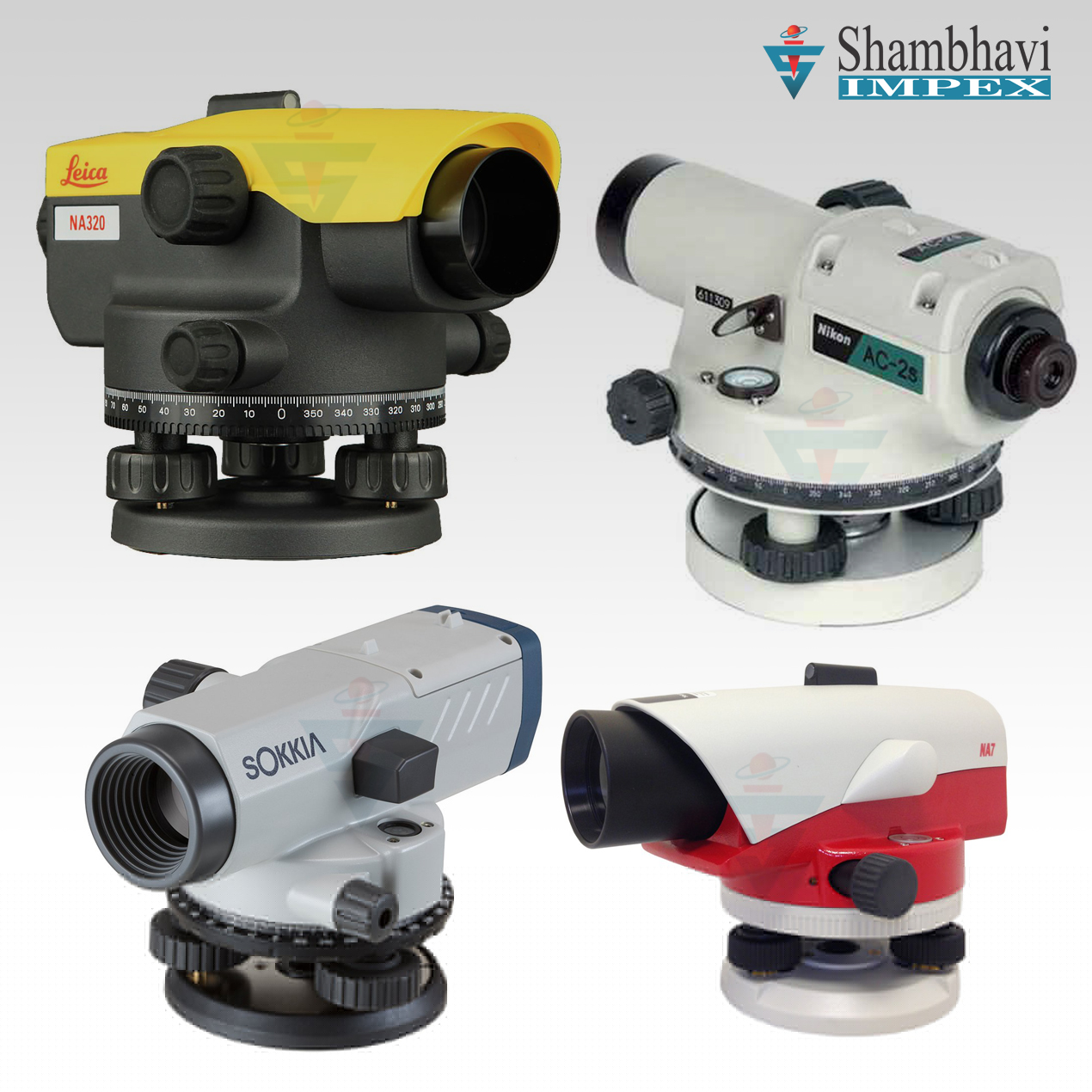

Auto Level - NL Series

Features - A Style

• Excellent shockproof function with patent

• Totally sealed structure for use in any weather

• Exclusive closed magnetic field, magnetically damped compensator

• Reflector - type circular vial observation

G Style - Package Special

• Upgraded magnetically - damped compensator

• NLGP20/24/28/32

• Includes - NL (G style) Auto Levvel, ATS-5 AL, Tripod AGR5 Staff (5 m)

Model Available - NL20, NL22, NL24, NL26, NL28, NL30, NL-32

Auto Level DSC-32T
Specification Image - Erect Magnification - 32X Effective Objective Aperture - 40mm Field of view - 1°20' Shortest Focus Distance - 0.6m Stadia constant - 100 Additive constant - 0 Working Range - ±15 Setting accuracy - 0.5" Circular Level Sensitivity - 8'/2 mm Circle Graduation - 1° or 1 gon Standard deviation for 1 km double run leveling - 1.5mm Net Weight - 2.2 kg Water & Dust Proof - IP54
Features

• High resolution 32X telescope.

• Horizontal tangent system with magnetically-damped compensation structure.

• Excellent shockproof function with patent

• Totally sealed structure for use in any weather

• Exclusive closed magnetic field, magnetically - damped compensator

• Reflector -type circular vial observation

Packing List
1.Automatic Level -1
2.Spanner - 1
3.Needle - 1
4.3# Plastic Screwdriver-1
5.Instruction Manual -1
6.Plumb bob -1
