Unconfined Compression Test Apparatus

Spring type unconfined compression testing apparatus can be used either in a laboratory or in field. This apparatus is as per the design of Building Research Station, U. K. Unconfined Compression Test Apparatus (Spring Type - Autographic)

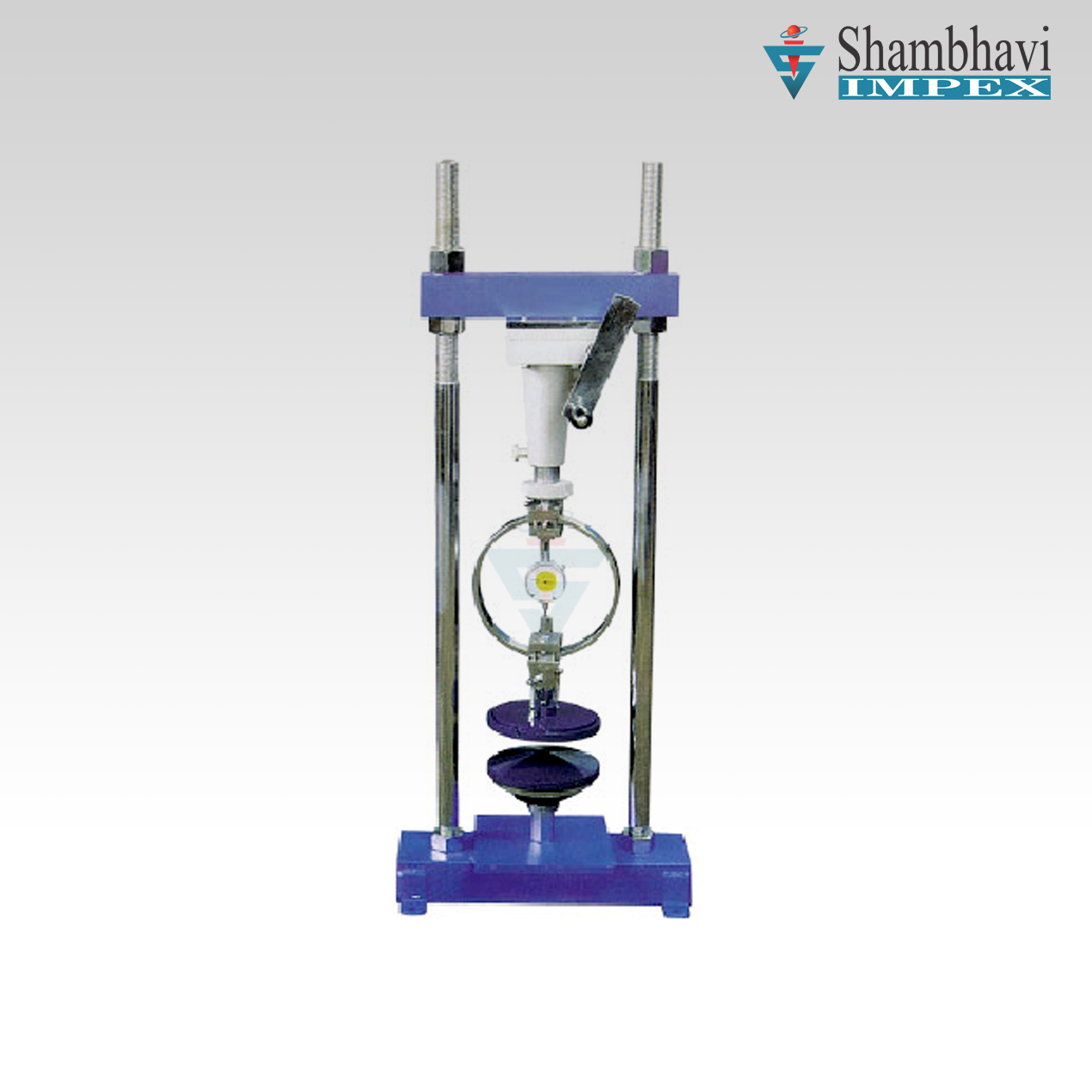

This is a hand operated instrument for determining the unconfined compression strength of soil specimens of diameter ranging from 38 mm to 100 mm. Load on the sample is applied gradually by a hand operated load frame and loads are measured on a sensitive proving ring attached to the load frame. Unconfined Compression Tester Proving Ring Type (Hand Operated).

This is similar to above with the added advantage of a motorised drive permitting a choice of three constant rates of stain. Specifications: comprises a screw operated load frame cap 5000 kg. with a gear box and motor drive giving 1.25, 1.5, 2.5 mm/min. rates of strain, a pair of cone seating, adaptor for proving ring and stain dial gauge bracket. Supplied with one pair of male/female coning tools for 38 mm dia samples but without proving ring and dial gauge. Suitable for operation on 230 volts, single phase A. C. Supply.

Capacity 50 kg. Specimen size 38 mm dia x 76 mm long. strain measurement is done on a scale fixed to one of the pillars. Scale graduated mm. Complete with conical seatings, a male coning tool and one proving ring 50 kg. cap with chart, specimen 40 mm dia x 80 mm long can also be tested.
