Lateral Extensometer

Lateral Extensometer - (SICCLE-01)

This is for determining the lateral extension of 15cms dia x 30cm high cement concrete cylinders while testing them under compression.

Salient Features

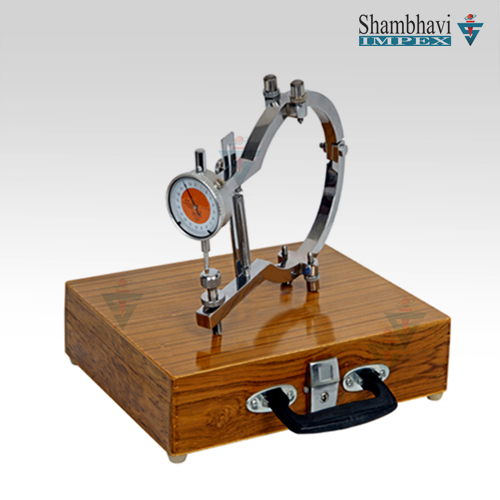

Specifications : The unit consists of two movable frames pivoted at one end. The extensometer is fixed to the specimen with the help of tightening screws. The lateral extension is indicated on a dial gauge of 0.002mm x 12mm travel. The extension is magnified 2.5 times and the dial gauge readings are to be divided by 2.5 to get the exact readings.
A spacer strip is provided to initially set the dial gauge, and can be removed after initial setting. Supplied in a wooden carrying case.
