Pozzolana Cement Mortar Permeability Apparatus (Three cell model)
For water proofing of concrete admixture and special water proof cements are used. Water proofing of these compounds, is established by measuring permeability of standard mortar. Specimen with or without such water proofing compounds. Permeability apparatus is used to determine permeability to water of cement mortar specimens with or without water proofing compound.
Salient Features

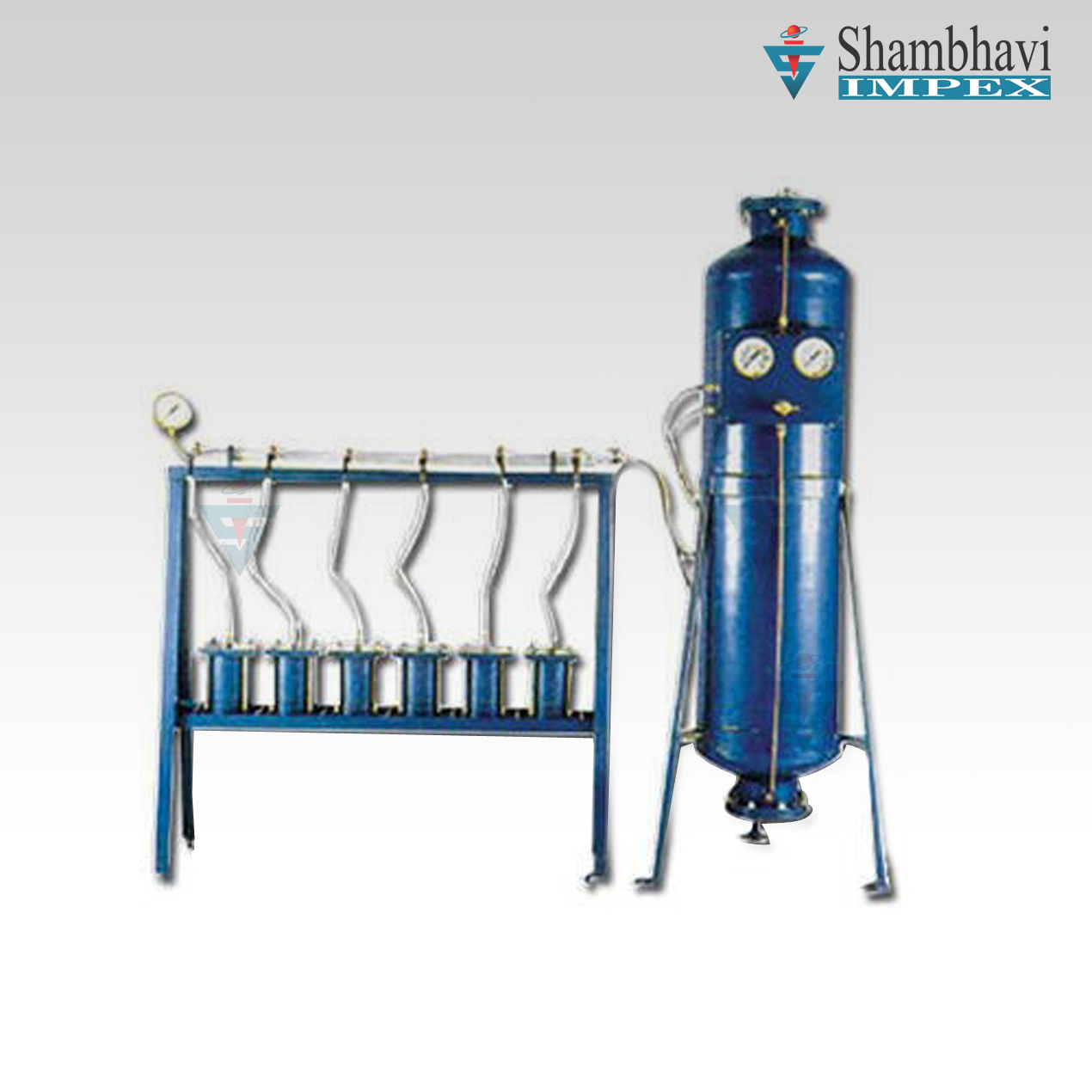

- Specification : The mortar permeability apparatus comprises three brass/ gun metal cells mounted on a stand and a pressure chamber with a pressure regulator. The cell can accommodate 100mm dia x 50mm high specimen. Each cell assembly consists of one base plate. The base plate has one outlet for water and is recessed to hold the specimen in place with a ring washer in between. The top plate has an inlet for water and a suitable connector for the application of pressurized water in the cell. The mounld and collar are clamped between the base plate and the top plate with the help of four tension rods and nuts. The cells are mounted on a stand.
- The pressure chamber is fitted with a pressure regulator which helps in regulating the pressure from 0-7kg/sq. cm. The regulator has two pressure gauges, one for indicating the pressure in the chamber (0-10.5kg/sq.cm.) The pressure chamber is connected to the cells with pressure hoses and with couplings. This pressure chamber is fitted with schrader valve. Pressure is applied to the pressure chamber with help of a foot pump and rubber hose which are supplied with the instrument.
- Also available:-Cement Mortar Permeability Apparatus (Single Cell Model)
- -Cement Mortar Permeability Apparatus (Three Cell Model)
- -Cement Mortar Permeability Apparatus (Six Cell Model)
