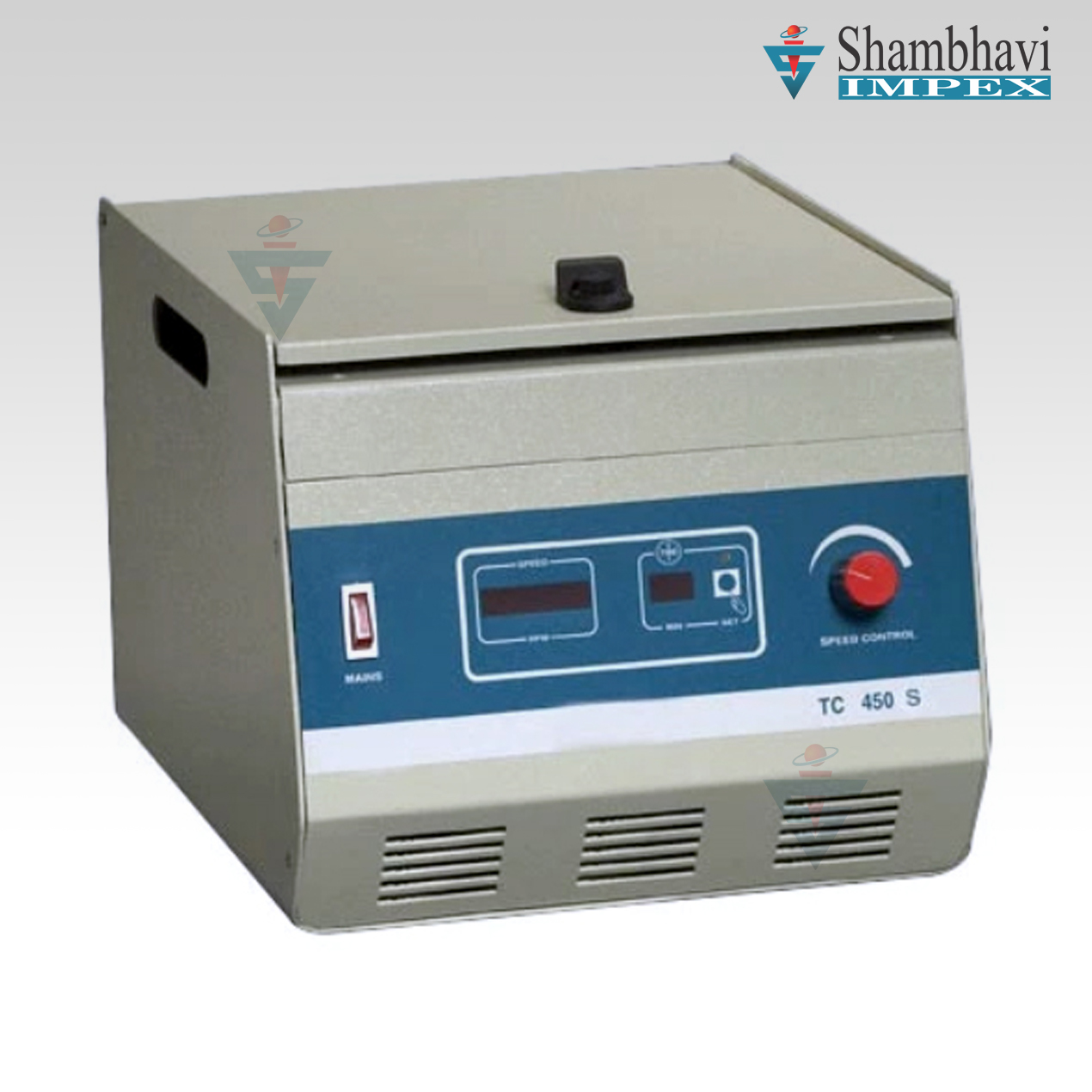

Industrial Centrifuges

These range of centrifuges are mainly designed for general purpose application with the facility of inter-chargeable rotor heads.

• S/O type Rotor Heads available at 4000 RPM in 8x15 & 4x50 cap./ml

• Angle Type Rotor Heads available at 5000 RPM in 8x15 & 4x50 cap./ml also 4000 RPM at 12X15 cap./ml

  Salient Features
  • Soft Touch Keypad.

  • Programmable Microprocessor control

  • LCD Display of set and working parameters

  • Display of RCF Value

  • 1-99 minutes Digital timer

  • Programmable Acceleration / Deceleration range 40- 240 seconds

  • Safety Lid switch

  • Imbalance safety cut off.

  • Imbalance detection & automatic switch off.

  • Vaccutainer Tubes of 2ml , 4ml , 5ml & 6ml can also be accommodated in this centrifuge

  • It is also offered with CE Mark on customer request.
  Technical Specification


  Model	SI-TC-450	SI-TC-650
  Max. Speed	5000 RPM	5500 RPM
  Max. RCF	3650 xg.	3950 xg.
  Max. Tube Size	50 ml	50 ml
  Max. Capacity	200 ml	300 ml
  Width	310 mm	360 mm
  Depth	410 mm	445 mm
  Height	290 mm	355 mm
  Weight	16.5 Kg	20.5 Kg
  Connected Load	0.18 Kva	0.30 Kva

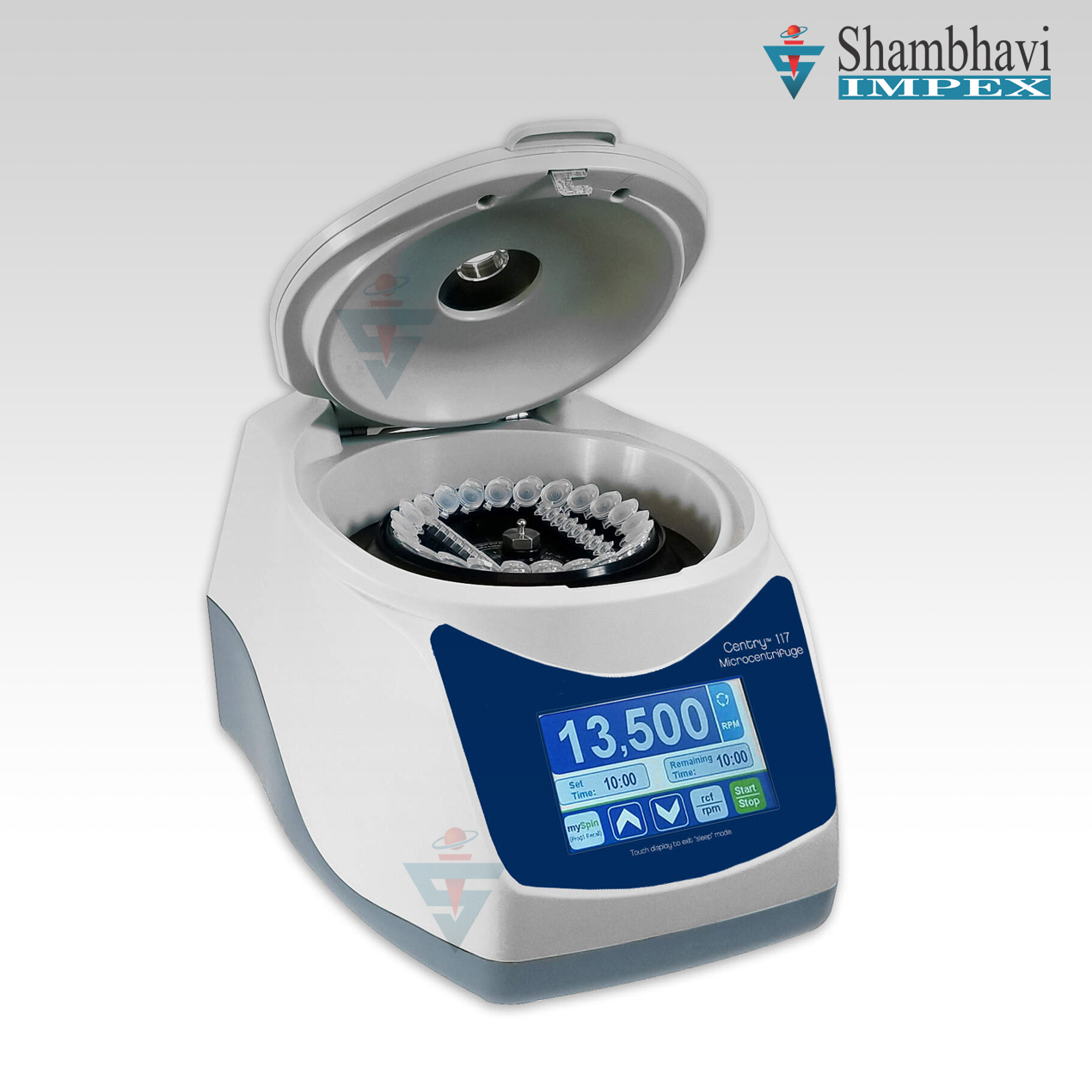

These centrifuges are designed for use of micro tubes - small capacity tubes, with the facility of inter-changeable rotor heads.

• Cap./ml (type of Tube) -24x1.5/2 (Eppendroff), 24xPCR (Eppendroff), 30x0.4 (Eppendroff), 16x1 (Eppendroff), 8x3 (Eppendroff), 6x5 P.P.(T.B), 10x1 Glass (R.B), 12x0.5 Glass (R.B)

• RPM-12000 to 16000

Technical Specification

Model	SI-MC-4815
Max. Speed	16000 RPM
Max. RCF	17600 xg.
Max. Tube Size	5 ml
Max. Capacity	48 ml
Width	320 mm
Depth	410 mm
Height	290 mm
Weight	16.5 Kg
Connected Load	0.30 Kva

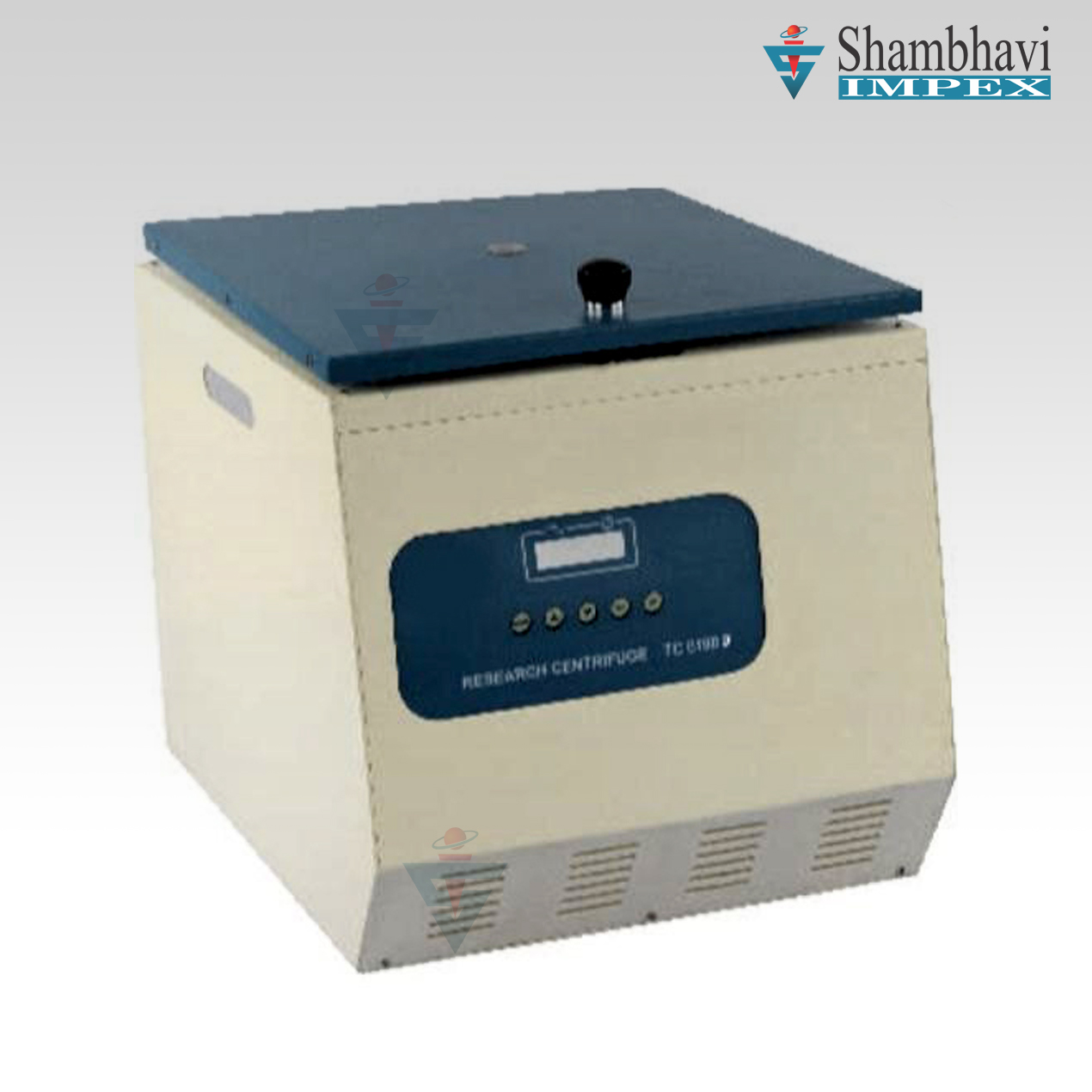

The range of table top Centrifuges are designed for high speed centrifuging applications in Research Labs, Colleges, Hospitals etc.

• Fixed Angle Rotor Head available for Cap./ml - 4x100, 8x50, 6x50, 4x50,8x25, 6x25, 12x15, 8x15, 6x15, 24x1.5/2, 24x0.5, 18x15, 192x0.5

• RPM-10000 to 20000

Technical Specification

Model	SI-HSC-4100
Max. Speed	20000 RPM
Max. RCF	34500 xg.
Max. Tube Size	100 ml
Max. Capacity	400 ml
Width	450 mm
Depth	570 mm
Height	510 mm
Weight	50 Kg
Connected Load	0.75 Kva

The range of table top Centrifuges are designed for high speed centrifuging applications in Research Labs, Colleges, Hospitals etc.

• Fixed Angle Rotor Head available for Cap./ml - 4x100, 8x50, 6x50, 4x50,8x25, 6x25, 12x15, 8x15, 6x15, 24x1.5/2, 24x0.5, 18x15, 192x0.5

• RPM-10000 to 20000

Technical Specification

Model	SI-RHSC-4100
Max. Speed	20000 RPM
Max. RCF	34500 xg.
Max. Tube Size	100 ml
Max. Capacity	400 ml
Width	860 mm
Depth	580 mm
Height	520 mm
Weight	114 Kg
Connected Load	1.75 Kva

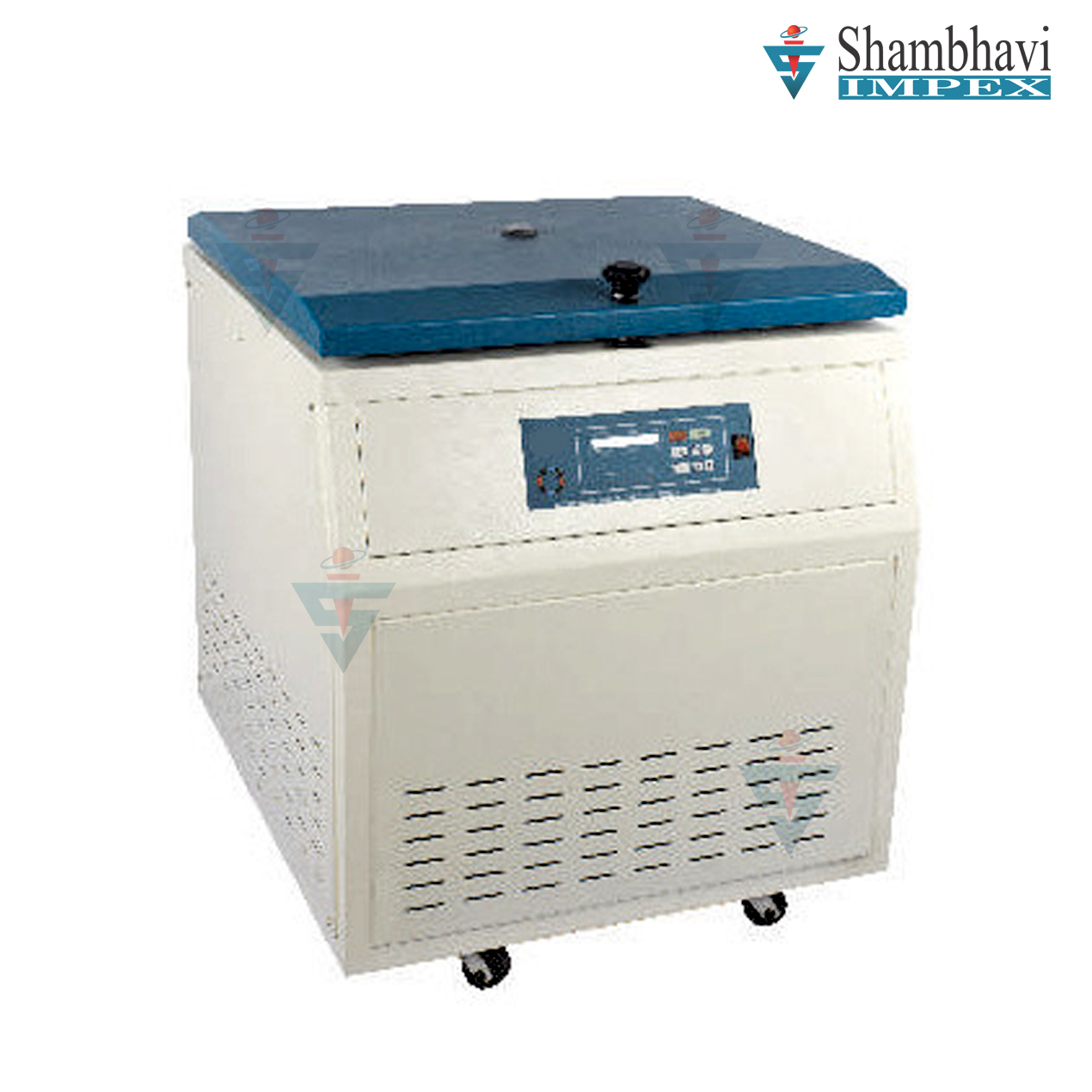

The range of Hi-Volume Centrifuges are designed for large capacity centrifuge tubes , bottles and blood bags. These centrifuges are mainly used in chemical and pharmaceutical processing, Biotech Labs etc. where large volume tubes & bottles are used. Fixed Angle Rotor Heads with 4500 RPM are available at following Cap./ml - 6x500, 8x250, 12x100, 16x50, 36x25, 72x15.
Technical Specification

Model	SI-MP-45
Max. Speed	4500 RPM
Max. RCF	6080 xg.
Width	750 mm
Depth	850 mm
Height	905 mm
Weight	200 Kg
