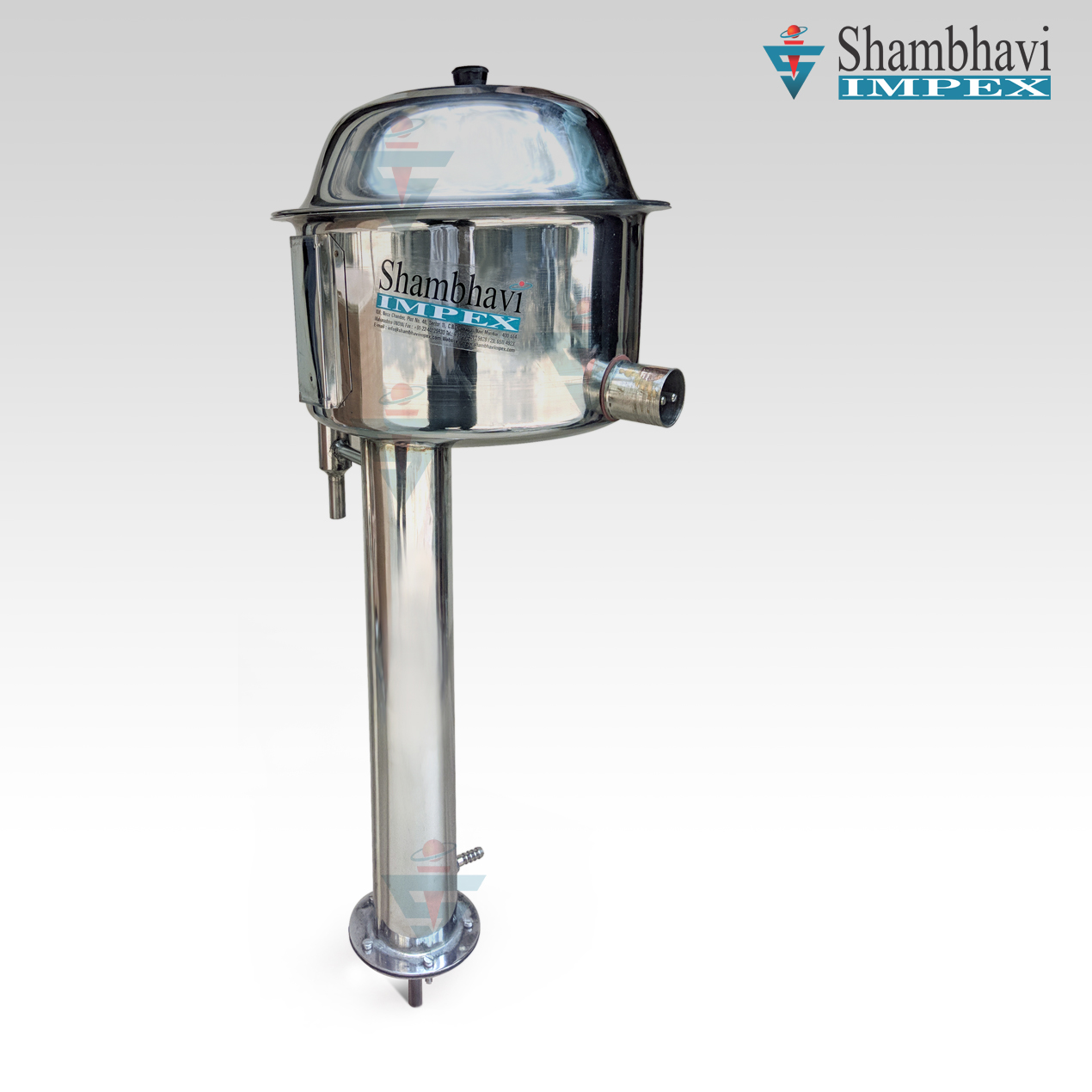

Industrial Water Still

• The unit is recommended for making pyrogen free distilled water of a very high degree of purity.
• Made out of S.S. special kettle element is fitted with Ejection Device/Auto Cut for safety of the element in case water supply is stopped.
• The cock fitted to the unit is of brass C.P. A wall mounting clamp is provided with the unit but without rubber tubing.
• Supplied with cord and plug to work on 220/230 volts A.C.

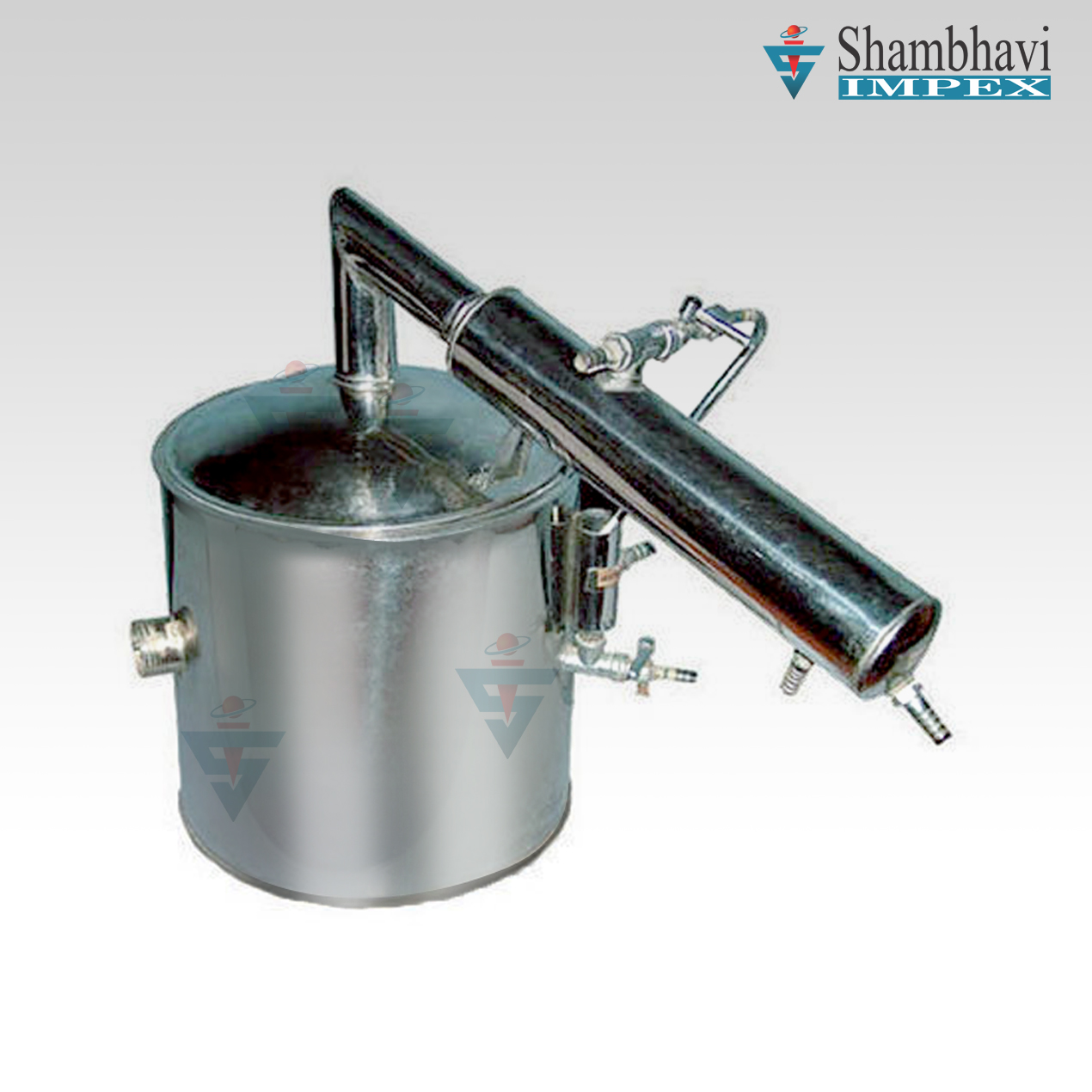

Salient Features & Construction : Doubled walled Water Still (Barnstead Type) is made up of Outer MS powder coated and Inner tank made of SS. The gap in between is filled with glass wool. All the fittings such as condenser, top, and outer chamber are made up of Stainless Steel. The raw water is first made to pass around the tubes in the condenser, where it gets heated neatly to the boiling point thus economizing the heating energy . The evaporators are fitted with a set of totally immersed long life heating elements and are easily removable. A convenient drain valve is provided for flushing and easy accessibility to the entire evaporating chamber. The water still is fitted with special immersion element (ISI Marked) with automatic ejection device which stops working in the case of failure of water supply. Supplied with cord and plug to work on 220/230 volts A.C. supply. Operation: The preheated water then passes out of the condenser, gives may out to the gaseous and volatile Impurities in the atmosphere with the help of a special device incorporated herein and finally enters and boiling pan for distillation. The inlet water passing into the stills flows around and outside of the condenser tubes where it becomes per-heated nearly to the boiling point.
Applications : These water distillation plants have been designed to meet with the requirements of best quality of distilled water. These are best suitable for removing all types of impurities Organic, Inorganic, Gaseous, Bacterial and Pyrogenic leaving a final pure distillate.
